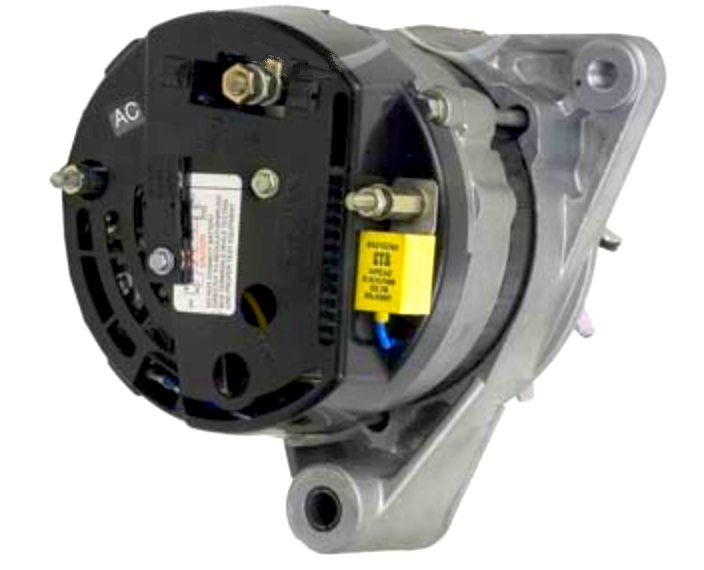

ORIGINAL OE MAHINDRA / LUCAS ALTERNATOR

Premium-quality Original OE Lucas alternator for Mahindra and Farmtrac tractors.

12 Volt • 36 Amp • Lucas A115 • Internal Regulator

Complete With Pulley

Made in India

OEM & INTERCHANGE NUMBERS

Lucas / Lucas TVS:
26021276, 26021278, 26921168, 26921168A

Mahindra:
000040001C01, 004001C01, 40001C01, 5556267R91, 556267R91, 005557754R91

Farmtrac:
ESL11954

APPLICATIONS

Farmtrac Tractors

435
535
545
545 DTC — 2.9L Diesel
555
555 DTC — 3.1L Diesel

Mahindra Tractors

2810

3325 — 25 Series

3505 — 05 Series

3510

3525 — 2WD T2

3540 — PST T4

3825 — 2WD T4

4025 — 2WD T4
4025 — 4WD T4

4035

4110

4500 — 2WD
4500 — 4WD

4505

4525 — 2WD T4

4530 — 4WD T2
4530 — 4WD T4

475 DI / E40

485 DI

5005

5500 — 2WD
5500 — 4WD

5525 — 2WD T2
5525 — 2WD T3
5525 — 2WD T4

5530 — 4WD T2

575 DI

6000 — 2WD
6000 — 4WD

6025 — 2WD T2
6025 — 2WD T3

6030 — 4WD T2

6500 — 2WD
6500 — 4WD

6530 — 4WD T2

C27
C35
C4005
E350

TECHNICAL SPECIFICATIONS

Manufacturer: Lucas
Family: Lucas A115
Quality: Original OE
Voltage: 12V
Output: 36 Amp
Mount Type: Spool
Pulley: Included
Fan Location: External
Regulator Location: Internal
Polarity: Negative Ground
Mounting Ear #1: M10 × 1.50 threaded
Mounting Ear #2: 10 mm unthreaded
B+ Terminal: M6 × 1.00
Weight: 11.04 lb. / 5.02 kg

IMPORTANT FITMENT NOTE

This alternator was used across numerous Mahindra tractor models and configurations. Verify the original alternator number and mounting configuration before ordering.
