DESCRIPTION

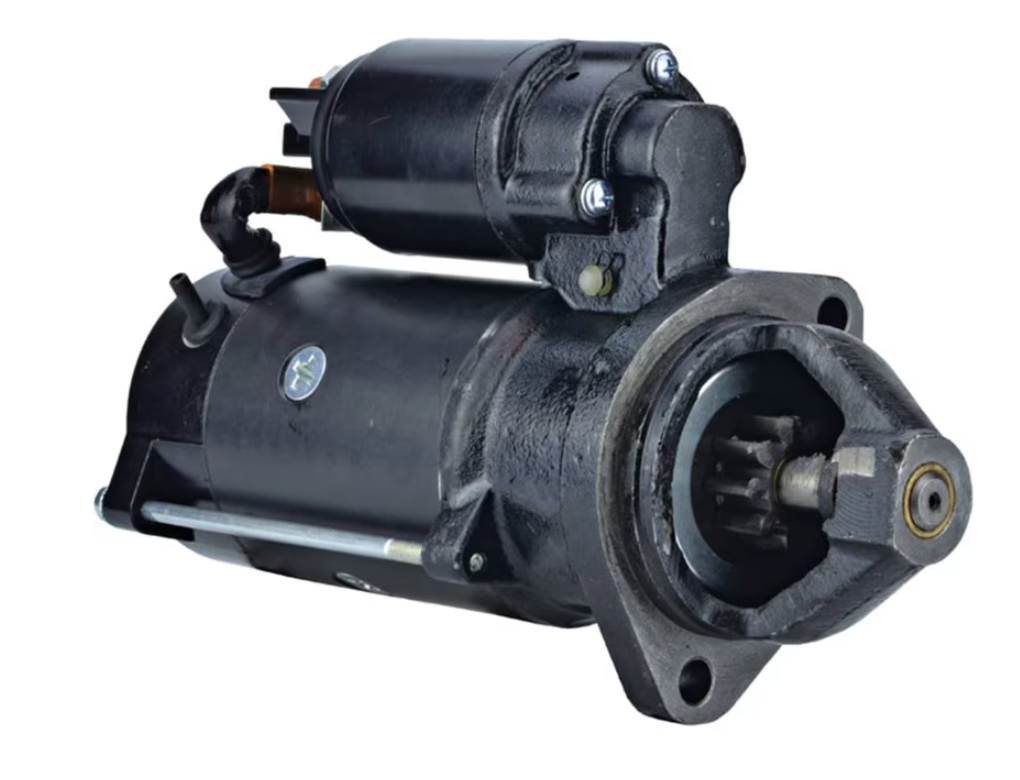

Original MAHLE / Iskra Heavy-Duty 3.2kW Starter for Deutz Diesel Applications

New original premium-quality MAHLE/Letrika/Iskra 12-volt, 3.2kW heavy-duty starter for Deutz-powered industrial and construction equipment.

This is the higher-output 3.2kW version, providing increased cranking power compared with the common 2.3/2.6kW replacement versions of this starter family. The 3.2kW MS641 configuration is documented as a direct replacement within this family. J&N Electric

Planetary gear-reduction design, clockwise rotation and 9-tooth drive.

New Original MAHLE Unit — No Core Charge — One Year Warranty

REPLACES / CROSS REFERENCE

Deutz / KHD

01181751
01182124
01182382
01182384
01183365
01183404
01183599
1181751
1182124
1182382
1182384
1183365
1183404
1183599
4300006
4300007

MAHLE / Letrika / Iskra

11.131.223
11.131.458
11.131.948
11.131.983
AZE4213
AZE4566
AZE6509
AZE6554
IS1073
IS1073-3.2
IS1454
MS27
MS641

Bosch

0001109369
0001109460
0001223016
0001223021
0986019820
0986019827
SR9984X

Those additional Deutz, Bosch and MAHLE/Letrika numbers are well supported by the cross-reference data. J&N Electric

I have intentionally left Lester numbers out, as we've been doing with your listings.

SPECIFICATIONS

Voltage: 12V
Power: 3.2kW / 4.29 HP
Rotation: Clockwise (CW)
Starter Type: Planetary Gear Reduction (PLGR)
Drive Teeth: 9
Pinion Diameter: 33.7mm / 1.327 in
Mounting: 2-Hole
Mounting Holes: 11mm, Unthreaded
Family: MAHLE/Letrika MS641 / AZE45
Condition: New Original MAHLE
Core Charge: None
Warranty: One Year

These specifications agree with the 3.2kW MS641 data. J&N Electric

APPLICATIONS

Your existing application information is useful, so I would retain it rather than make this page unnecessarily broad:

Bomag Compactor

BW124DH-3 — F3L1011 Deutz Diesel — 1997–2006
BW124PDH-3 — F3L1011 Deutz Diesel — 1997–2006

Gehl Skid Steer

4640 — F3M2011 — 2004–2005
4640E — F3M2011 — 2006–2009
4840 — F4M2001 — 2004–2005
4840E — F4M2001 — 2006–2009
5640 — F4M2001 — 2004–2005
5640E — F4M2001 — 2006–2009
6640 — BF4M2001 — 2004–2005
6640E — BF4M2001 — 2006–2009

Gehl Skid Steer Loader

6635DXT — BF4M1011F — 1996–1997
6635SXT — BF4M1011F — 1996–1997
SL5635 / SL5635DXT / SL5635SXT — F4M1011F/BF4M1011F — 1997–1998
SL5636DXT — F4M1011F — 1997–1998

Hamm Roller

3307 — BF4M1011F — 2001–2006
3307P — BF4M1011F — 2001–2006

Stone Roller

WP6400 — F2L1011 — 1999–2006

WP6400B — F2L1011 — 1999–2006
