DESCRIPTION

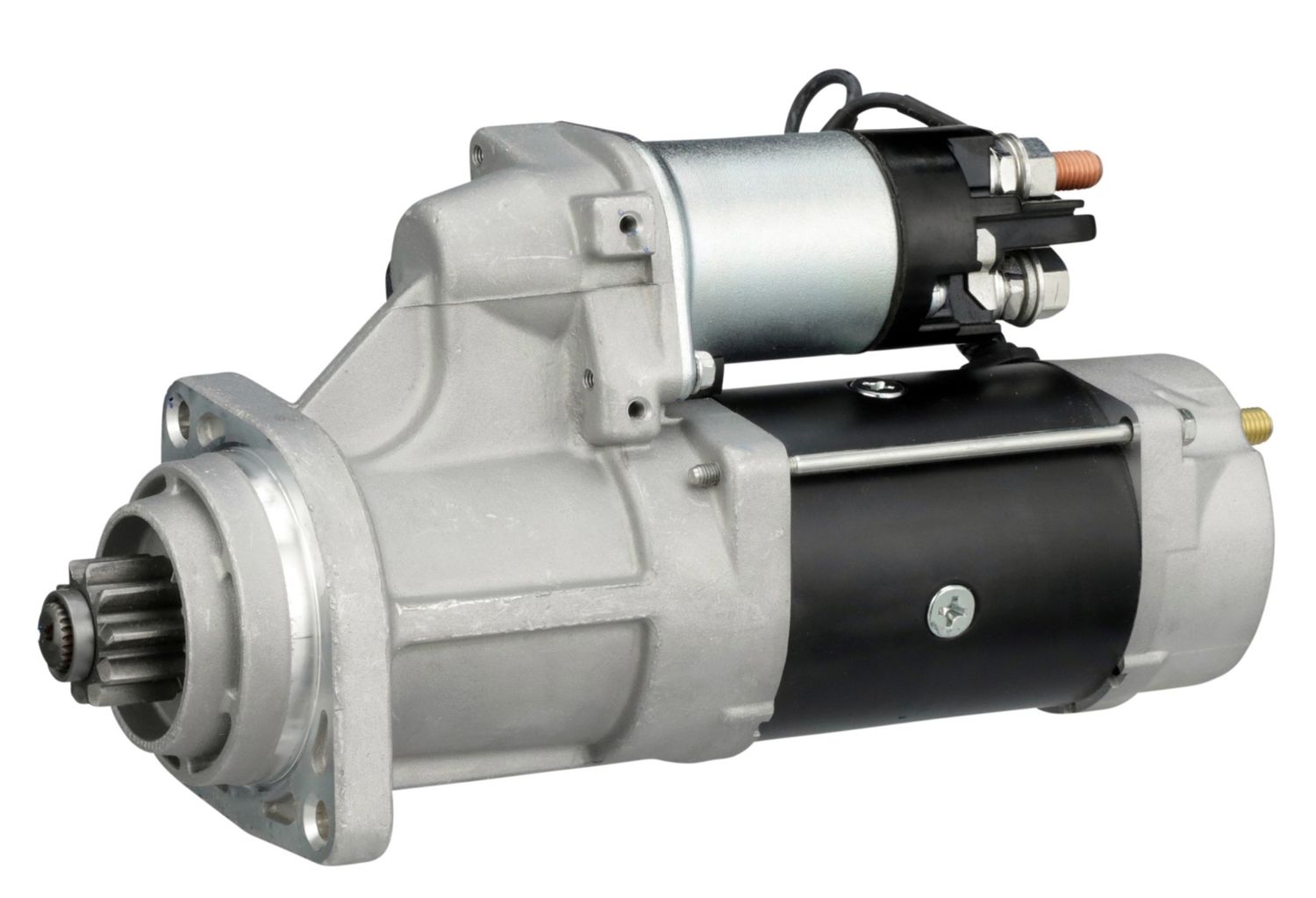

AJ-ELECTRIC Heavy-Duty Gear Reduction Starter for John Deere Equipment

Premium quality, 100% new 12-volt, 5.0kW gear-reduction starter designed to replace the older, heavier direct-drive starter used on numerous John Deere agricultural and construction applications.

The second-generation PLGR design provides powerful cranking in a substantially smaller and lighter package and includes a preinstalled IMS control relay for positive starter engagement.

Fits selected John Deere tractors, backhoes, combines, excavators, feller bunchers, graders, loaders, power units, skidders and utility equipment.

New Unit — No Core Charge — One Year Warranty

Please verify the original starter number and mounting configuration before ordering.

REPLACES / CROSS REFERENCE

Prestolite / Leece-Neville
35260840, 35260840S, 35262430, 35262430S, M105311, M105603, M105R2011SE, M105R2503SE, M105R2511SE, MS2-520

Delco Remy
10461003, 10461081, 10461225, 10461768, 10478953, 10478957, 10479036, 10479307, 1113402, 1113640, 1113641, 1113644, 1113650, 1113651, 1113653, 1113656, 1113672, 1113676, 1113690, 1990308, 1990309, 1990315, 1990318, 1990326, 1993754, 1993762, 1993769, 1993799, 1993881, 1993886, 1993947, 1993963, 8200076, 8300021

Denso
028000-329, 028000-504

SPECIFICATIONS

Voltage: 12V
Power: 5.0kW
Rotation: Clockwise (CW)
Starter Type: PLGR — Planetary Gear Reduction
Design: Prestolite / Leece-Neville M105 Style
Drive Teeth: 10
Mount: SAE #1 / 3-Hole
Configuration: Rotatable Mounting
Condition: New
Core Charge: None
Warranty: One Year

APPLICATIONS

John Deere Agricultural Tractors

4030
4040
4050
4230
4240
4250
4350
4430
4440
4450
4520
4620
4630
4640
4650
4840
4850
6030
7020
8430
8440
8450

John Deere Combines

6602
6622
7720
7722
8820
9500

John Deere Cotton Pickers

9940
9950

John Deere Excavators

690
690A
690B

John Deere Feller Bunchers

643
643D
693B
743
743A

John Deere Graders

570
570A

John Deere Loaders / Tool Carriers

444
444C
444D
544
544A
544B
544C
544D
544E
544G
624E
624G
644C
644D
644E
644G

John Deere Other Equipment

500C Backhoe
510 Industrial Tractor
4320 Utility
5200 Utility
5440 Harvester
5720
5730
5830
740 Skidder
740A Skidder
