DESCRIPTION

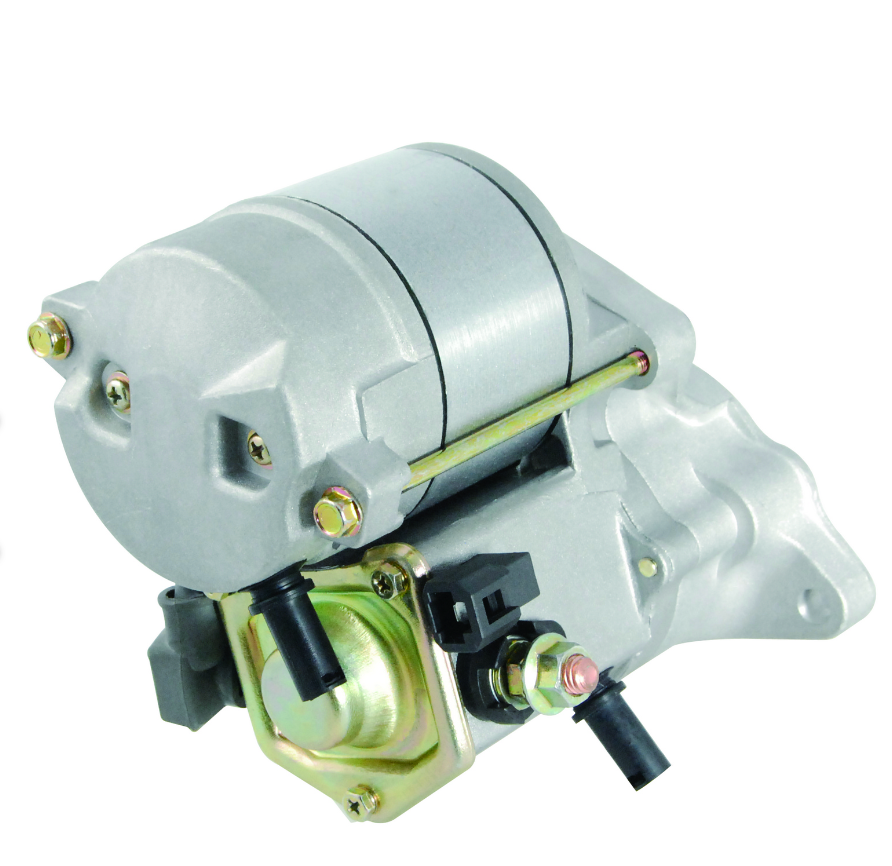

AJ-ELECTRIC Replacement Starter for Kubota Excavators, Tractors & Utility Vehicles

New premium-quality 12-volt, 1.4kW gear-reduction starter for selected Kubota excavators, sub-compact tractors and RTV utility vehicles.

Fits popular Kubota KX41-2, KX61-2 and KX91-2 excavators, BX22 and BX2200 tractors, and RTV900 and RTV1100 utility vehicles.

This modern 9-tooth Denso-style OSGR starter replaces the earlier starter configurations used on these applications.

Replaces Kubota 16235-63010, 16235-63011, 16235-63012, K7561-61810, K7561-61811, K7571-96800, K7571-96810, K7711-61800, K7711-96800 and K7711-96810.

New Unit — No Core Charge — One Year Warranty

Please verify your original starter number and application before ordering.

REPLACES / CROSS REFERENCE

Kubota

16235-63010
16235-63011
16235-63012
K7561-61810
K7561-61811
K7571-96800
K7571-96810
K7711-61800
K7711-96800
K7711-96810
77700-02602

Denso

228000-6320
228000-6321
428000-2640
428000-2641
9742809-264

SPECIFICATIONS

Voltage: 12V
Power: 1.4kW / 1.88 HP
Rotation: Clockwise (CW)
Starter Type: OSGR — Offset Gear Reduction
Design: Denso Style
Drive Teeth: 9
Gear Diameter: 28.8mm / 1.134 in
Mounting: 2-Hole Flange
Mounting Holes: 8.9mm, Unthreaded
Condition: New
Core Charge: None
Warranty: One Year

APPLICATIONS

Kubota Excavators

KX41-2 — D1105 Diesel — 1995–2006
KX41-2S — D1105 Diesel — 2000–2011
KX41-2SV — D1105 Diesel — 2000–2011
KX61-2 — D1105 Diesel — 1995–2006
KX61-2S — D1105 Diesel — 1995–2006
KX91-2 — V1505 Diesel — 1995–2006
KX91-2S — V1505 Diesel — 2000–2011

Kubota Sub-Compact Tractors

BX22 — D905 Diesel — 2002–2003
BX2200D — D905 Diesel — 2001–2003

Kubota Utility Vehicles

RTV900 — Various Models

RTV1100 — Various Models
