DESCRIPTION

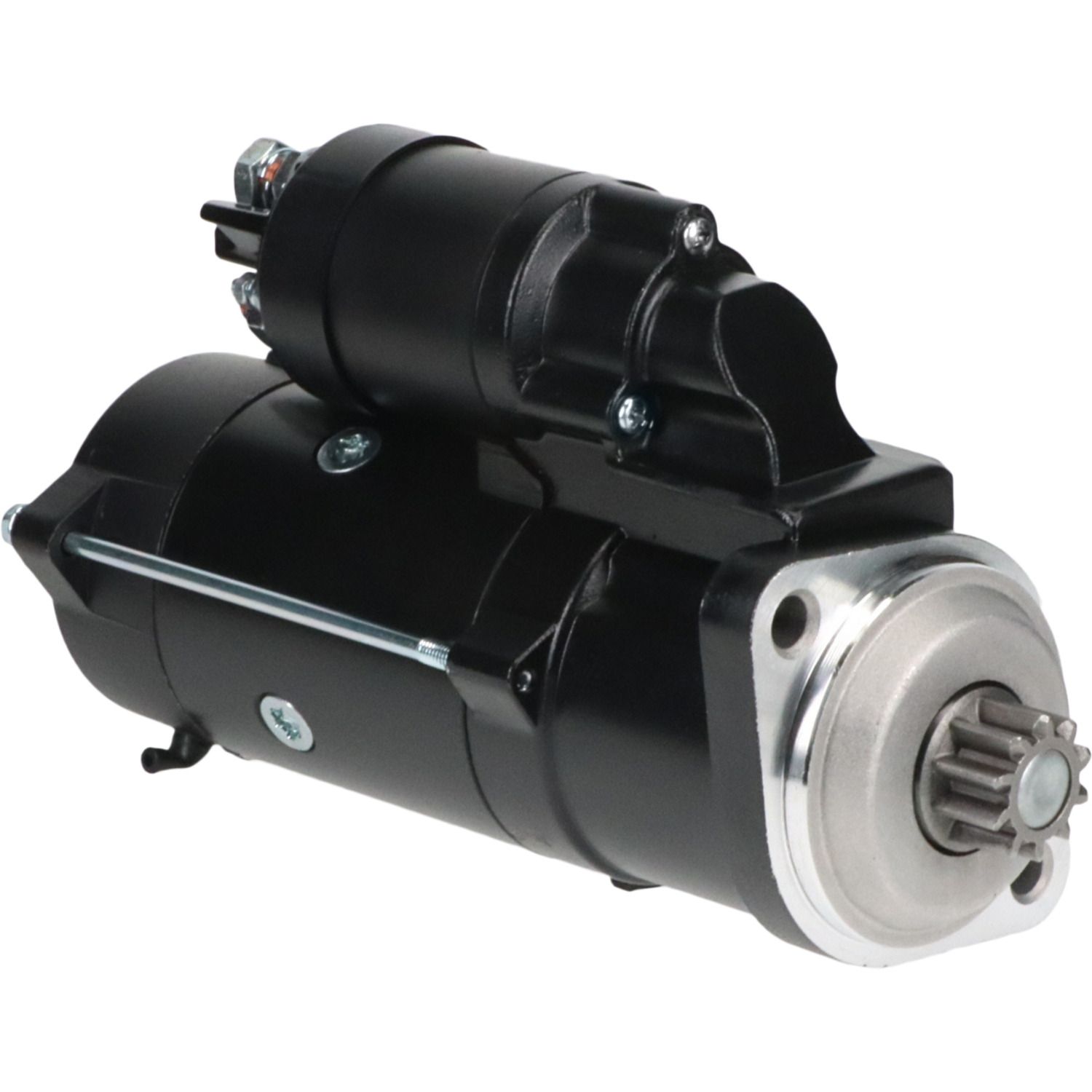

AJ-ELECTRIC Premium Replacement Starter for John Deere Tractors and Skid Steer Loaders

New premium-quality MAHLE/Letrika-style planetary gear-reduction starter for John Deere agricultural tractors, utility tractors, skid steer loaders and industrial engine applications.

This 12-volt, 2.8kW starter features a 10-tooth drive, clockwise rotation and compact noseless gear-reduction design.

Replaces John Deere RE501157, RE505746, RE516157, RE551445, TY24438 and related numbers, as well as MAHLE/Letrika IS1027, MS293 and AZE4603.

New Unit — No Core Charge — One Year Warranty

Please verify the original starter number and equipment application before ordering.

REPLACES / CROSS REFERENCE

John Deere

RE19275
RE49033
RE501157
RE505746
RE516157
RE54092
RE551445
RE68470
TY24438
TY6688
TY6719

MAHLE / Letrika / Iskra

11.131.063
11.131.221
11.131.752
11.131.771
11.131.789
AZE4603
AZE4620
AZE4648
AZE4652
AZE4655
IS1027
IS1027.3
MS293

Denso

028000-8400
028000-8401
028000-8402
028000-8403
028000-8404
028000-8405
228000-6470
228000-6471
228000-8401

Valeo

438012
D7R14

SPECIFICATIONS

Voltage: 12V
Power: 2.8kW / 3.75 HP
Rotation: Clockwise (CW)
Starter Type: PLGR — Planetary Gear Reduction
Family: MAHLE/Letrika AZE46
Drive Teeth: 10
Gear OD: 1.260 in / 32 mm
Overall Length: 10.709 in / 272 mm
Mounting: 2-Hole
Mounting Holes: 10.4 mm Unthreaded
Register OD: 3.244 in / 82.4 mm
Design: Noseless / Exposed Drive Gear
Weight: Approximately 16.6 lb
Condition: New
Core Charge: None
Warranty: One Year

APPLICATIONS

John Deere Agricultural / Utility Tractors

1030
1030OU
1030VU
1040
1040V
1120
1130
1140
1140F
1140V
1350
1630
1630OU
1630VU
1640
1640F
1750
1750V
1840
1840F
1850
1850F
1850V
1950
1950F
2020OU
2030OU
2040F
2040S
2120
2130
2140
2150
2250F
2255
2440
2450
2450F
2555
2650
2650F
2750
2755
2840
2850
2940
3030
3040
3100
3110
3130
3140
3350
3400
3410

Additional John Deere Tractors

5076EF
5210
5310
5310N
5410
5410N
5415
5420
5425
5510
5520
5605
5615
5625
5705
5715
5725

John Deere Skid Steer Loaders

240 — 3029D — 1999–2004
250 — 3029T — 1999–2004
260 — 3029T — 1999–2004
