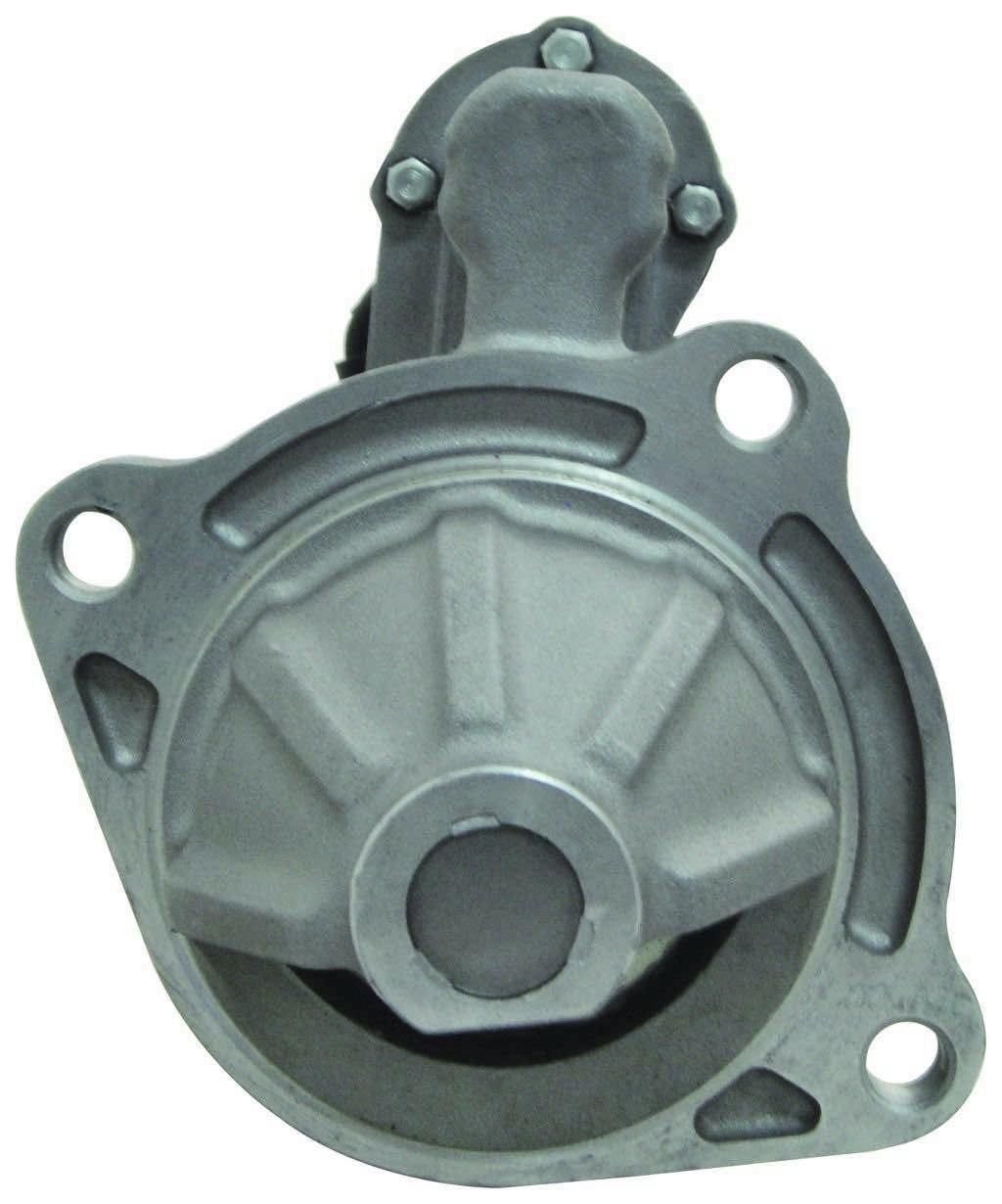

AJ-ELECTRIC Premium OE Mahindra Starter

Premium-quality replacement starter for a wide range of Mahindra agricultural and utility tractors.

12 Volt • 2.2 kW / 2.95 HP • 10 Tooth • Direct Drive • Clockwise Rotation

Made in India

OEM & INTERCHANGE NUMBERS

Mahindra:
1233544R91, 001233544R91, 005558084R91

Lucas / Lucas TVS:
26024036, 26024036A, 26024070A, 26025115A, 26925131B

Additional Reference:
23344R91

APPLICATIONS — MAHINDRA TRACTORS

225DI
255DI
265DI
275R
275VIP
2810 — 3-Cylinder
3325 — 25 Series
3505 — 05 Series
3510 — 3-Cylinder
3525 — 25 Series
3825 2WD T4 — 25 Series
4025 2WD T4 — 25 Series
4035 — 3-Cylinder
4110 — 4-Cylinder
4500 — 2.4L 3-Cylinder Diesel
4500 4WD — 2.4L 3-Cylinder Diesel
4505 — 05 Series
4525 2WD T4 — 25 Series
4530 4WD — 30 Series
4540 4WD
475DI — 05 Series
485DI — 05 Series
5005 — 05 Series
5500 — 00 Series
5500 4WD — 00 Series
5520 — 20 Series
5520 4WD — 20 Series
5525 — 25 Series
5525 2WD T3 — 25 Series
5530 2WD T3 — 30 Series
5530 4WD — 30 Series
5530 4WD T3 — 30 Series
575DI — 05 Series
585DI
6000 — 00 Series
6000 4WD — 00 Series
6025 — 25 Series
6030 2WD T3 — 30 Series
6030 4WD — 30 Series
6030 4WD T3 — 30 Series
605DI
6500 — 00 Series
6500 4WD — 00 Series
6520 — 20 Series
6520 4WD — 20 Series
6525 2WD T3 — 25 Series
6530 2WD T3 — 30 Series
6530 4WD — 30 Series
6530 4WD T3 — 30 Series
7060 4WD T3 — 60 Series
7520 — 20 Series
7520 4WD — 20 Series
8560 2WD T3 — 60 Series
8560 4WD T3 — 60 Series
B275
C27 — C Series
C35 — C Series
C4005 — 05 Series
E350 — 05 Series

TECHNICAL SPECIFICATIONS

Voltage: 12V
Power: 2.2 kW / 2.95 HP
Starter Type: Direct Drive (DD)
Rotation: Clockwise
Pinion Teeth: 10
Gear OD: 1.516 in. / 38.5 mm
Mounting: 3-hole
Mounting Hole #1: 10.5 mm unthreaded
Mounting Hole #2: 10.5 mm unthreaded
Mounting Hole #3: 10.5 mm unthreaded
Weight: 22.5 lb. / 10.23 kg

IMPORTANT FITMENT NOTE

Mahindra used different starter configurations on some tractor models and production ranges. Verify the original starter number, 10-tooth pinion and mounting configuration before ordering.
