DESCRIPTION

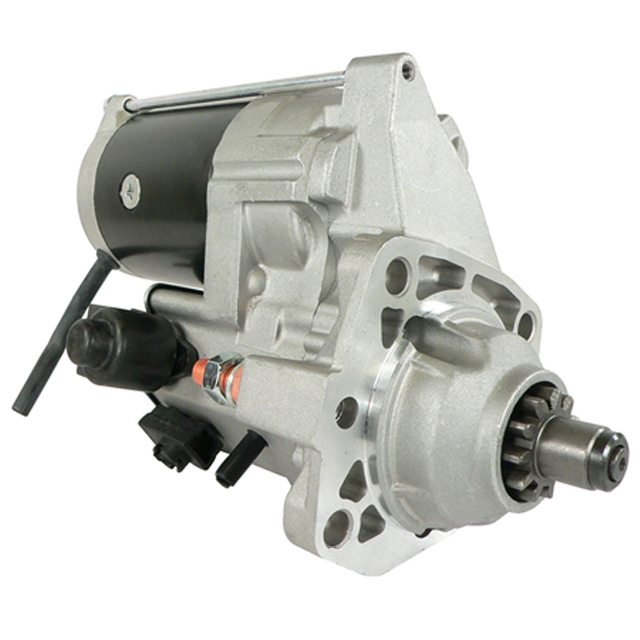

AJ-ELECTRIC Premium Replacement Starter for John Deere Equipment

New premium-quality 12-volt, 4.8kW gear-reduction starter for John Deere agricultural, construction and industrial equipment. Replaces John Deere SE501403, TY24439 and related Denso starter numbers.

Replaces / Cross Reference

John Deere: RE501298, RE70957, SE501403, TY24439
Denso: 228000-463, 228000-4630, 228000-4631, 228000-528, 228000-5280, 228000-5281, 228000-653, 228000-6530, 228000-6531, 228000-6532, 9722809-787
International / Navistar: 2589223C91

John Deere currently lists SE501403 as an alternative for RE70957

Specifications

Voltage: 12V
Power: 4.8kW
Rotation: Clockwise
Starter Type: OSGR – Offset Gear Reduction
Drive: 11 Tooth
Gear OD: 1.575 in / 40 mm
Mount: 3-Hole Flange
Mounting Holes: 11.5 mm unthreaded
Wet Clutch Seal: Yes
Ground Stud: Parallel to case
Weight: Approximately 26 lb
New Unit – No Core Required
One Year Warranty

Applications

John Deere Fairway Mowers

7400
7500 — 6125HZ John Deere Diesel — 2002–2006

John Deere Agricultural Equipment

6650 — 6 Cyl. 8.18L / 499 CID Diesel — 1998–2003

John Deere Skidders

460D — 6068 John Deere Diesel — 2000–2006
560D
660D
848G

John Deere Sprayers

4730 — 6-414 Diesel
4830 — 6-414 Diesel
4920 — 6081 8.1L John Deere Diesel — 2000–2006

John Deere Windrowers

4995 — 6 Cyl. 6.78L / 410 CID Diesel — 2002, 2004–2009
