DESCRIPTION

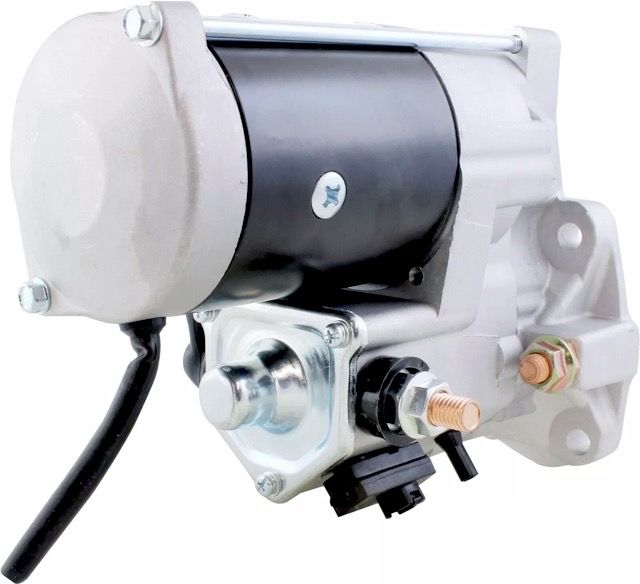

AJ-ELECTRIC Premium Replacement Starter for John Deere Heavy Equipment

New premium-quality Denso-style gear-reduction starter for John Deere articulated trucks, backhoes, crawlers, excavators, wheel loaders and industrial equipment.

Replaces / Cross Reference

John Deere: RE501050, RE501150, RE69705, RE70958, SE501406, TY24443
Denso: 228000-6560, 228000-6561, 228000-6562, 280-7064, TG228080-6562

Specifications

Voltage: 24V

Power: 7.5kW / 10.05 HP

Rotation: Clockwise

Starter Type: OSGR – Offset Gear Reduction

Drive: 11 Tooth

Gear OD: 1.567 in / 39.8 mm

Mount: 3-Hole Flange

Mounting Holes: 11.3 mm unthreaded

Ground: Threaded hole in drive-end housing for ground stud

Weight: 24.25 lb / 11.02 kg

New Unit – No Core Required

One Year Warranty

Applications

John Deere Articulated Trucks

250D — 6-549 9.0L John Deere Diesel — 1997–2006
300D — 6090 9.0L John Deere Diesel — 1997–2006

John Deere Backhoes

300D — 6-549 9.0L John Deere Diesel — 1997–2006

John Deere Bundlers

1490D

John Deere Crawlers

700H
700J — 6.8L John Deere Diesel
750C-II
750J — 6.8L John Deere Diesel
850J — 9.0L John Deere Diesel

John Deere Excavators

230LC
230LCR — 4045 Diesel
270LC
330C
330LC
350DLC — 9.0L John Deere Diesel
370C — 6081 8.1L John Deere Diesel
370C LC — 6081 8.1L John Deere Diesel
690C

John Deere Wheel Loaders

444H
444J
444K
524K
544H
544J
544K
624H
624J
624K
644H
644J
644K
724J

744K
