DESCRIPTION

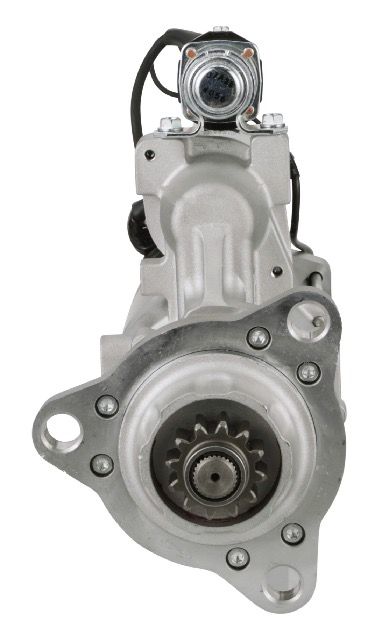

Premium Quality New 39MT Gear Reduction Starter

12V • 7.3kW • 12 Tooth • Clockwise Rotation

Premium-quality new heavy-duty gear-reduction starter for specified John Deere agricultural equipment and diesel engines.

This modern 39MT-style starter replaces John Deere SE501453 and other specified original starter numbers, including selected older direct-drive starter applications.

Upgrade to Modern Gear Reduction Technology

Compared with traditional heavy-duty direct-drive starters, gear-reduction technology offers several important advantages:

• Faster Starting — High cranking torque helps provide strong, dependable diesel engine starting.
• Lighter Weight — Compact gear-reduction construction reduces weight compared with many older direct-drive starters.
• Longer Service Life — Modern heavy-duty design provides durable, dependable operation.
• Integrated Magnetic Switch (IMS) — Helps ensure reliable solenoid activation.
• Rotatable Mounting Flange — Allows the starter to be indexed for different mounting configurations.
• Over-Crank Protection (OCP) — Helps protect against excessive cranking.

This replacement starter may differ in appearance from the original equipment starter while providing the benefits of modern gear-reduction technology.

PRODUCT FEATURES

• Premium-quality new starter
• Heavy-duty 39MT-style construction
• 12V, 7.3kW planetary gear-reduction design
• 12-tooth starter drive
• Clockwise rotation
• Externally rotatable mounting flange
• Movable IMS relay
• Over-Crank Protection
• No core charge

REPLACES / CROSS REFERENCE

John Deere

RE28781, RE38633, RE41756, RE61457, RE61547, RE69590, SE501453, TY6730

Delco Remy

8200433

SPECIFICATIONS

• Condition: New
• Voltage: 12V
• Power: 7.3kW
• Starter Type: Planetary Gear Reduction (PLGR)
• Starter Family: 39MT Replacement
• Rotation: Clockwise (CW)
• Pinion Teeth: 12
• Pinion Outside Diameter: 1.811 in / 46 mm
• Overall Length: 14.323 in / 363.8 mm
• Mounting: Three-hole rotatable flange
• Mounting Holes: 16.8 mm, unthreaded
• Integrated Magnetic Switch (IMS): Included
• Over-Crank Protection (OCP): Included
• Weight: 33.1 lb / 15.04 kg

APPLICATIONS

JOHN DEERE TRACTORS

5000 Series

• 5010
• 5020 — All serial-number ranges listed for SE501453

7000 Series

• 7520

8000 Series

• 8450, 8650
• 8560, 8760, 8960
• 8570, 8770, 8870, 8970
• 8630

9000 Series

• 9100, 9200, 9300, 9400
• 9300T, 9400T

9020 Series

• 9120, 9220, 9320, 9420, 9520, 9620

JOHN DEERE SELF-PROPELLED FORAGE HARVESTERS

5000 Series

• 5200, 5400
• 5440, 5460
• 5720, 5820
• 5730, 5830

6000 Series

• 6610, 6710, 6810, 6910
• 6650, 6750, 6850, 6950

JOHN DEERE DIESEL ENGINES

10.1L Series 500 Diesel

• 6101AF010
• 6101HF010

10.5L PowerTech Diesel

• 6105HF001

IMPORTANT APPLICATION INFORMATION

Replaces John Deere SE501453 in the specified equipment applications.

Verify the original starter number, 12V starting system, 12-tooth drive and mounting arrangement before ordering. Some equipment models may use more than one starter configuration.
