DESCRIPTION

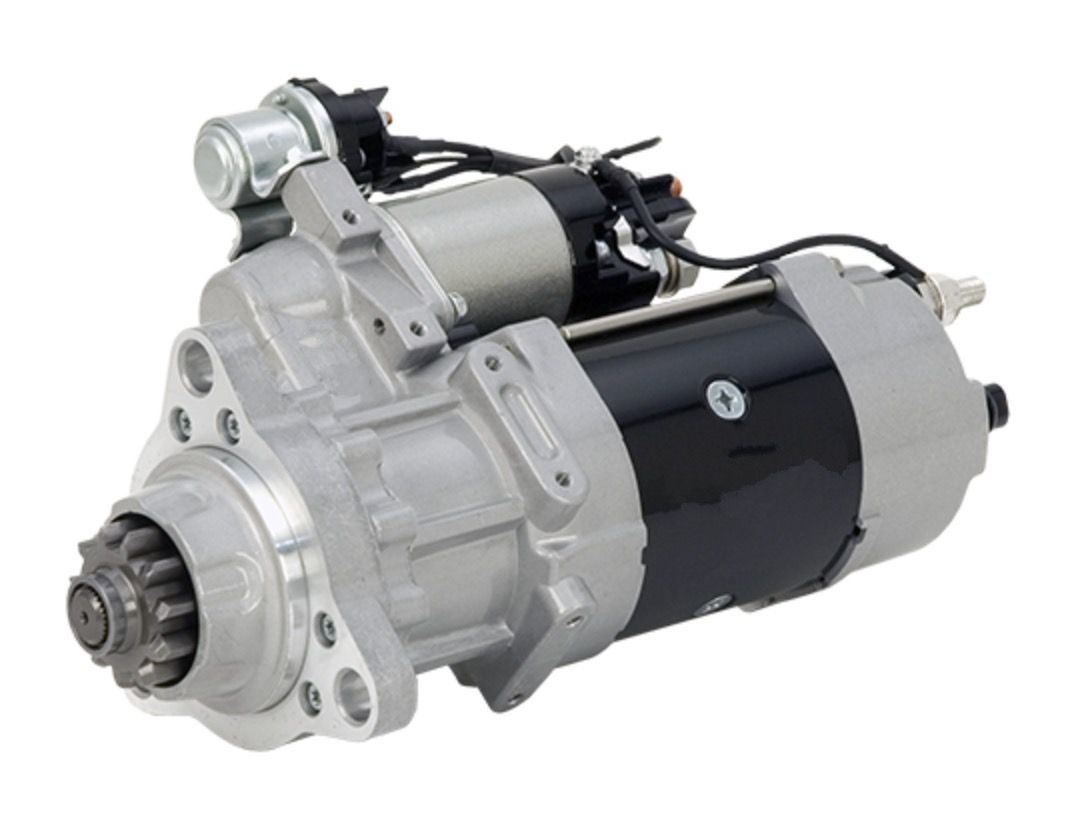

Premium Quality New 39MT Gear Reduction Starter

12V • 7.3kW • 12 Tooth • Clockwise Rotation

Premium-quality new heavy-duty gear-reduction starter for specified Case agricultural, construction and industrial equipment.

This modern 39MT-style starter replaces selected older direct-drive starters, providing a compact, powerful starting solution for heavy-duty diesel engines.

Upgrade to Modern Gear Reduction Technology

• Faster Starting — High cranking torque helps provide dependable diesel engine starting.
• Lighter Weight — Compact gear-reduction construction reduces weight compared with many older direct-drive starters.
• Longer Service Life — Modern heavy-duty construction is designed for dependable operation.
• Integrated Magnetic Switch (IMS) — Helps ensure reliable solenoid activation.
• Rotatable Mounting Flange — Allows indexing for different installation configurations.
• Over-Crank Protection (OCP) — Helps protect the starter against excessive cranking.

The replacement starter may differ in appearance from the original direct-drive unit.

PRODUCT FEATURES

• Premium-quality new starter
• Heavy-duty 39MT-style construction
• 12V, 7.3kW planetary gear-reduction design
• 12-tooth starter drive
• Clockwise rotation
• Externally rotatable three-hole mounting flange
• Movable IMS relay
• Over-Crank Protection
• No core charge

REPLACES / CROSS REFERENCE

Case / Case IH

20-2386T91, 202386T91, A145324, A162578, A186224, A34442, A47464, A75864

Delco Remy

8200433

SPECIFICATIONS

• Condition: New
• Voltage: 12V
• Power: 7.3kW
• Starter Type: Planetary Gear Reduction (PLGR)
• Starter Family: 39MT Replacement
• Rotation: Clockwise (CW)
• Pinion Teeth: 12
• Pinion Outside Diameter: 1.811 in / 46 mm
• Overall Length: 14.323 in / 363.8 mm
• Mounting: Three-hole rotatable flange
• Mounting Holes: 16.8 mm, unthreaded
• Integrated Magnetic Switch (IMS): Included
• Over-Crank Protection (OCP): Included
• Weight: 33.1 lb / 15.04 kg

APPLICATIONS

CASE AGRICULTURAL TRACTORS

• Case 2090 — 1978–1987

CASE CRANES AND MATERIAL-HANDLING EQUIPMENT

• Case 1500 Cruz Crane — 1979–1982
• Case 2000 Cruz Crane — 1979–1982
• Case 770 Travelift — 1971–1982

IMPORTANT APPLICATION INFORMATION

Replaces the specified Case original starter numbers according to AJ-ELECTRIC interchange information.

Equipment models may have multiple starter configurations depending on production date, engine and electrical system.

Verify the original starter number, 12V starting system, 12-tooth drive and mounting arrangement before ordering.
