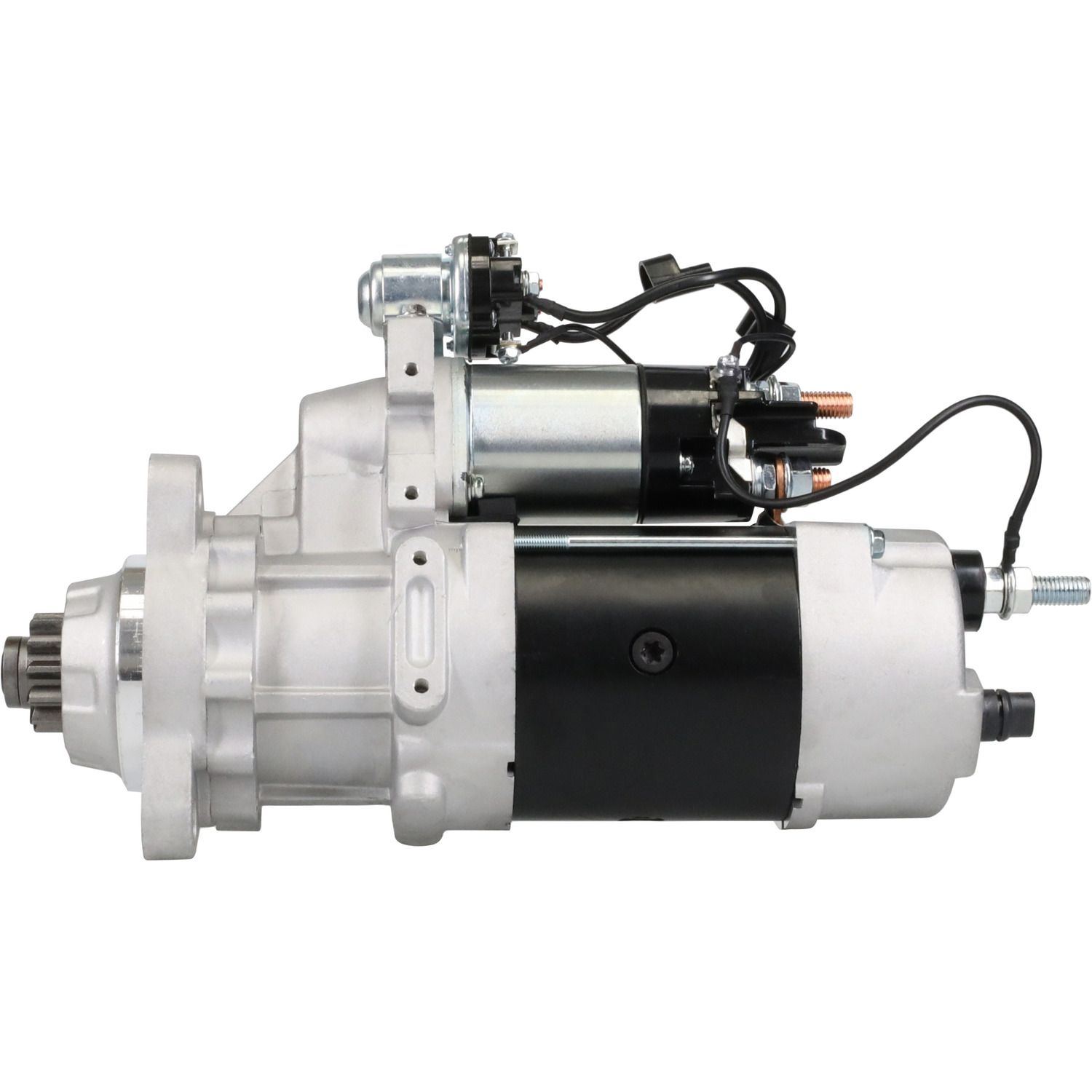

Premium Quality New 24V 8.3kW Planetary Gear Reduction Starter designed for compatible Caterpillar diesel engines, construction machinery and heavy equipment requiring a Delco 39MT-style starter.

The advanced planetary gear reduction design delivers powerful cranking torque and efficient starting performance for large diesel engines. Compared with conventional direct-drive starters, gear reduction technology offers a compact, lighter-weight design while maintaining the high starting torque required for demanding heavy-duty applications.

This starter features a movable Integrated Magnetic Switch (IMS), providing flexibility in electrical connection positioning, and Over-Crank Protection (OCP), designed to help protect against excessive cranking.

The rotatable drive-end housing provides additional installation flexibility for compatible mounting arrangements.

An excellent replacement choice for Caterpillar crawler dozers, excavators, wheel loaders, motor graders, scrapers, pipelayers and other heavy equipment equipped with the appropriate 24-volt starting system.

PRODUCT FEATURES

• Premium Quality New Gear Reduction Starter
• Heavy-Duty 24 Volt, 8.3kW
• Delco 39MT-Style Planetary Gear Reduction
• Powerful High-Torque Starting Performance
• Compact, Efficient Construction
• Rotatable Drive-End Housing
• Movable Integrated Magnetic Switch (IMS)
• Over-Crank Protection (OCP)
• 12-Tooth Pinion
• Clockwise Rotation
• SAE 3 Mounting Configuration

REPLACES / CROSS REFERENCE

Caterpillar: 0R2186, 3A1872, 3A1872H, 3P0007, 3T2371, 3T2579, 3T2764, 3T4583, 3T4586, 3T6305, 4N3181, 4N7752, 8C3651, 8N2145

Delco Remy: 8200086, 8200435, 8200702

Cummins: 5284105, 5284106

Komatsu: 1219520H92, 1219521H92, 1219526H92, 1221592H91, 1243215H92, 6742-82-4230, 6742014240, 690644C91

Komatsu Remanufactured References: R1219521H92, R6742014240, STR1016

SPECIFICATIONS

• Product: Starter Motor
• Condition: New
• Voltage: 24V
• Power: 8.3kW
• Starter Series: 39MT
• Design: Planetary Gear Reduction
• Rotation: Clockwise
• Pinion Teeth: 12
• Pinion Pitch: 8/10
• Mounting: SAE 3
• Drive-End Housing: Rotatable
• Integrated Magnetic Switch: Movable IMS
• Over-Crank Protection: Yes

APPLICATIONS

CATERPILLAR CRAWLER DOZERS

• D4E — 3304 Engine — 1985–1986
• D4H — 3304 Engine — 1985–1996
• D5B — 3306 Engine — 1985
• D5H — 3304 Engine — 1985–1996
• D6D — 3306 Engine — 1985–1997
• D6H — 3306 Engine — 1985–1995
• D7G — 3306 Engine — 1985–1992

CATERPILLAR CRAWLER EXCAVATORS

• 215C — 3304 Engine — 1987–1992
• 219 — 3304 Engine — 1987–1992
• 219D — 3304 Engine — 1987–1992
• 225 — 3208 Engine — 1985–1986
• 225B — 3304 Engine — 1986–1992
• 225D — 3304 Engine — 1986–1992
• 227 — 3208 Engine — 1986–1992

CATERPILLAR CRAWLER LOADERS

• 963 — 3304 Engine — 1985–1995
• 963B — 3306 Engine — 1995–1996
• 973 — 3306 Engine — 1985–1995

CATERPILLAR WHEEL LOADERS

• 936 — 3304 Engine — 1985–1987
• 936E — 3304 Engine — 1987–1992
• 950B — 3304 Engine — 1985–1987
• 950E — 3304 Engine — 1987–1991
• 966D — 3306 Engine — 1985–1987
• 966E — 3306 Engine — 1987–1990
• 966F — 3306 Engine — 1990–1996

CATERPILLAR MOTOR GRADERS

• 120G — 3304 Engine — 1985–1995
• 12G — 3306 Engine — 1985–1995
• 130G — 3304 Engine — 1985–1995
• 140G — 3306 Engine — 1985–1995
• 14G — 3306 Engine — 1985–1995

CATERPILLAR SCRAPERS

• 613C — 3208 Engine — 1985–1993
• 615 — 3306 Engine — 1985–1987
• 615C — 3306 Engine — 1985–1993
• 627B — 3306 Engine — 1985–1986
• 627E — 3306 Engine — 1986–1993
• 637D — 3306 Engine — 1985
• 637E — 3306 Engine — 1986–1991

CATERPILLAR PIPELAYERS

• 561D — 3306 Engine — 1985–1992
• 571G — 3306 Engine — 1986–1992
• 572G — 3306 Engine — 1986–1992

CATERPILLAR COMPACTORS

• 815B — 3306 Engine — 1985–1989, 1991–1996
• 815F — 3306 Engine — 1995–1996
• 816B — 3306 Engine — 1985–1989, 1991–1996
• 816F — 3306 Engine — 1995–1996

CATERPILLAR FORESTRY AND OTHER EQUIPMENT

• FB227 Forestry Log Loader — 3208 Engine — 1985–1993
• 814B Wheel Dozer — 3306 Engine — 1985–1995
• 508 Wheel Skidder — 3204 Engine — 1987–1989
• 518 Wheel Skidder — 3304 Engine — 1985–1995
• 528 Wheel Skidder — 3306 Engine — 1985–1995

CATERPILLAR MARINE AND INDUSTRIAL ENGINES

• 3208 — 1985–1995
• 3304 — 1985–1995
• 3306 — 1985–1995

IMPORTANT FITMENT INFORMATION

Designed for compatible 24-volt Caterpillar applications requiring the specified Delco 39MT starter configuration.

Equipment may have different starter arrangements depending on engine serial number, electrical system and original equipment specifications. Verify the original starter part number, voltage, mounting configuration, pinion and electrical connections before ordering.
