DESCRIPTION

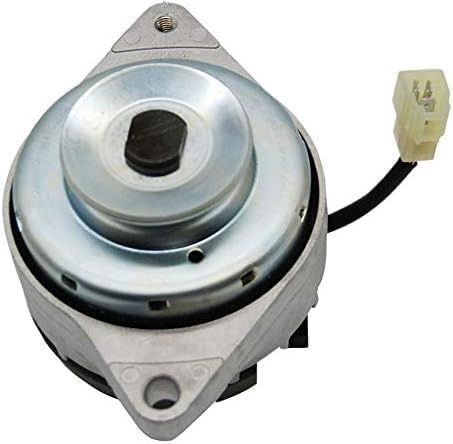

AJ-ELECTRIC Replacement Charging Alternator for Kubota Diesel Engines

New 12-volt charging alternator for selected Kubota diesel engines used in generators, welders and industrial equipment.

Compact dynamo-style design with a single-groove pulley and regulator/rectifier configuration.

Replaces Kubota 17472-64012 and updated part number 1K571-64010.

New Unit — No Core Charge — One Year Warranty

Verify the original part number and charging-system configuration before ordering.

REPLACES / CROSS REFERENCE

Kubota

17472-64010 17472-64011 17472-64012 17472-64013 17472-64014 1K571-64010 1K571-64011 1K571-64012 1K571-64013 1K571-64014

Onan / Cummins

185-7269

SPECIFICATIONS

• Voltage: 12V
• Output: 20 Amp
• Type: Compact Dynamo-Style Charging Unit
• Pulley: Single-Groove Solid
• Pulley Diameter: Approximately 65 mm
• Mounting Hole 1: M8 × 1.25 Threaded
• Mounting Hole 2: 10.7 mm Unthreaded
• Polarity: Negative Ground
• Core Charge: None
• Warranty: One Year

APPLICATIONS

Kubota Diesel Engines

• D722
• D902
• D905
• D1005
• D1105
• V1305
• Z402
• Z482

Multiquip Equipment

DLW330X2 Welder/Generator — Kubota D902E3B engine

DLW400ES/ESA Welder/Generator — Kubota V1305 engine
